It is recommended that before you begin you should have your copy of the Windows ’95 disks or CD-ROM at hand as you may be asked for it. If your machine is not a stand-alone and is connected to other machines around it, on a network, you should seek advice from your systems administrator before continuing.

Setting up Dial-Up Networking

Making a Connection

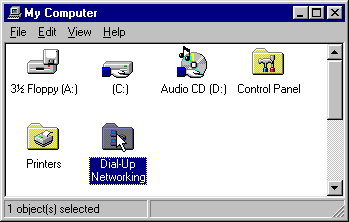

Double click the My Computer icon on the desktop

Double click the Dial-Up Networking icon

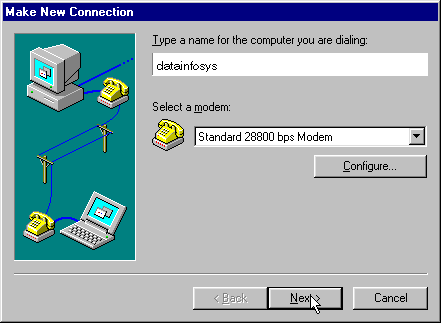

Double click the Make New Connection icon

Type datainfosys for the Name of the Computer you are dialingThe modem set up on your computer should already be displayed. If it is not, then please consult your Windows ’95 documentation for further information on how to set up a modem for use under Windows ’95

Click Next

Do NOT enter anything in the box for area code

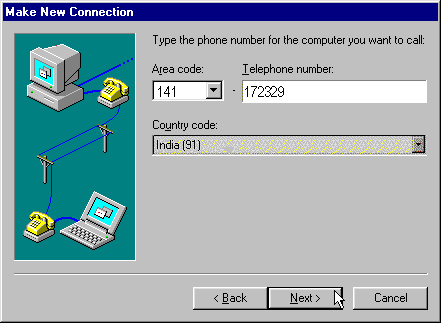

Under Telephone Number type 172329
Click Next

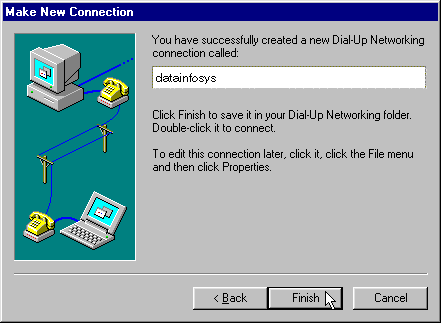

Click Finish

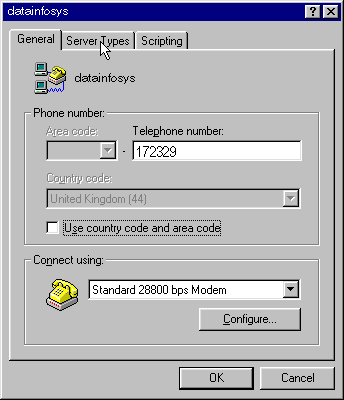

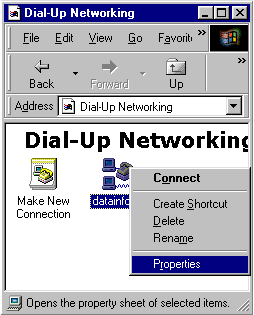

Highlight the datainfosys icon, and click the RIGHT mouse button once to display a menu, and select Properties

Under the Phone Number section, make sure that the Use Country Code and Area Code option is NOT checked.

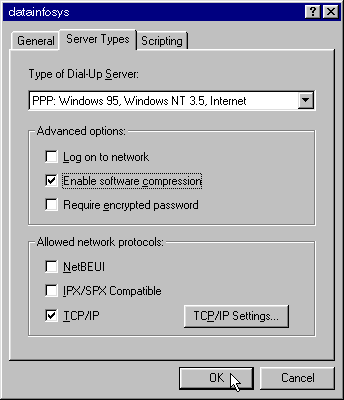

Select the Server Types tab

The Type of Dial-up Server should be set to PPP: Windows ’95, Windows NT 3.5, Internet
Under Advanced Options make sure that ONLY Enable software compression is ticked.
Under Allowed Network Protocols make sure that ONLY TCP/IP is ticked, remove the ticks from NetBEUI and IPX/SPX
Click OK

To check your Dial Up Networking configuration:

Double click My Computer
Double click Dial Up Networking
Right click on your Net4India icon
Select Properties
Ensure all details are as those described above.

Configuring TCP/IP

N.B. You should have your copy of Windows ’95 to hand when
following these instructions

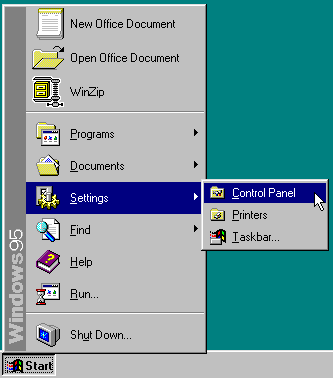

Click Start

Click Settings and select Control Panel

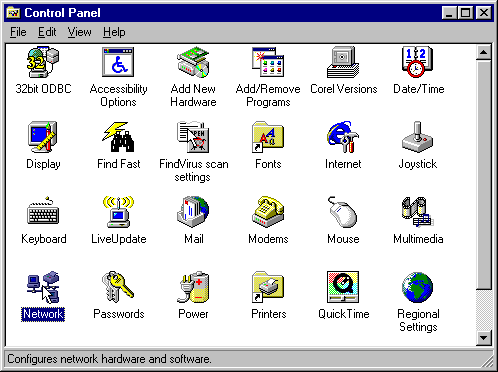

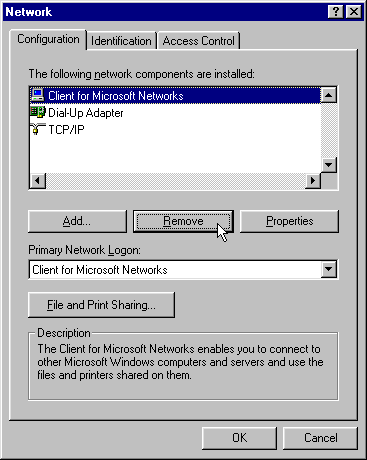

Double click the Network icon

The only components necessary to connect to datainfosys are;

Client for Microsoft Networks (interchangeable with Microsoft Family Logon)
Dial-Up Adapter
TCP/IP

If you have any other components installed, they may interfere with your connection. If you have a network card installed on your machine, you should not remove the components associated with it from this window. If you are in doubt, do not remove the component.

If you are missing any components, follow these steps:

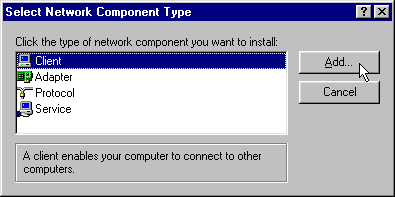

Click the Add… button
Select:
- Client (for Client for Microsoft Networks)
- Adapter (for Dial-Up Adapter)
- Protocol (for TCP/IP)
Click the new Add… button

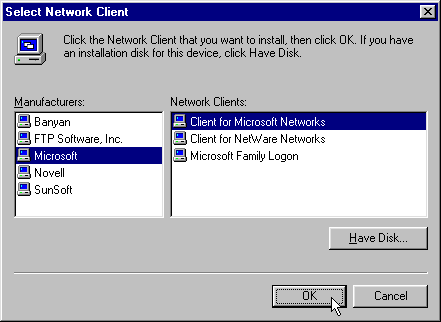

All three components are manufactured by Microsoft, so in the Select Network Client/Adapter/Protocol window, select Microsoft from the left hand side, and the component you require from the right hand side. Then click OK.

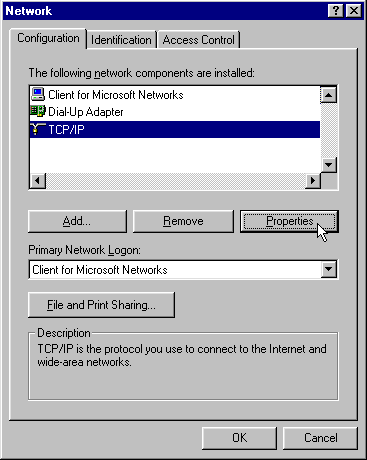

Once you have the necessary components listed, highlight TCP/IP and select Properties

From the tabs at the top, make sure that:

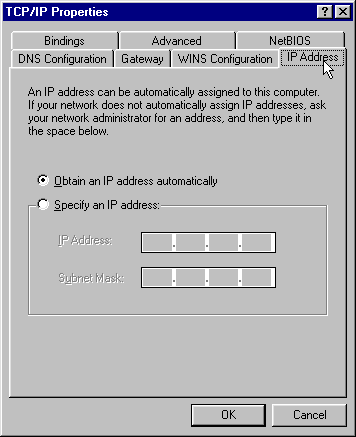

IP Address is set to Obtain IP Address Automatically

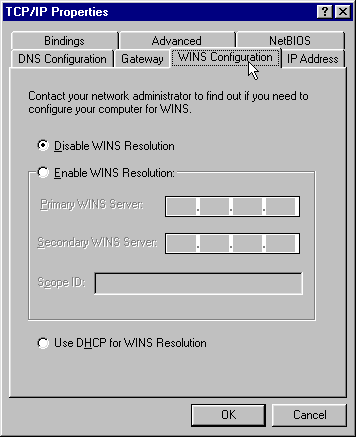

WINS Configuration is set to Disable WINS

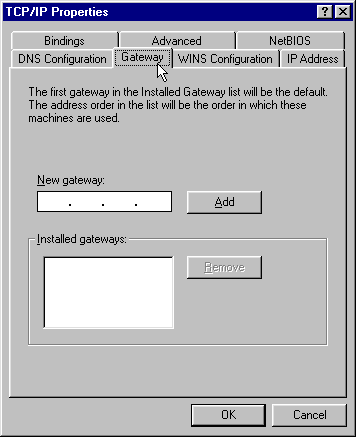

Gateway has no installed gateway (there are no numbers present)

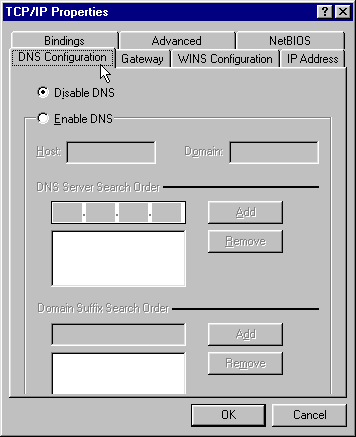

DNS Configuration is set to Disable DNS

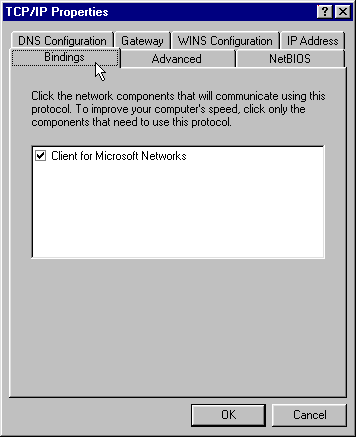

Bindings has a tick next to Client for Microsoft Networks only

Click OK
From the Networks Configuration screen select OK
The computer may build a driver information database, copy some files, or request your Windows 95 CD. When copying files you may see a message titled Version Conflict, saying that the file you are copying is older than the file already in your system, to which you should click Yes to keep the current version of the file. When the process is complete you will see a message titled System Settings Changed, prompting you to Restart the machine – to which you should click Yes. Once your machine has rebooted, you are ready to connect.
Creating an datainfosys icon on the Desktop

Once all the settings are complete, the task of dialing into datainfosys can be automated by creating an datainfosys icon on your Desktop. We recommend using the shortcut instead of allowing your browsing software to dial for you, as you will tend to make a more reliable connection.

Double click the My Computer Icon

Double click the Dial-Up Networking icon

10.

Highlight the datainfosys icon, and click the RIGHT mouse button once to display a menu

11.

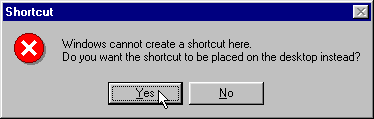

Select Create Shortcut, and the following message will appear

12.

“Windows cannot create a shortcut here. Do you want the shortcut to be placed on the desktop instead?”
Click Yes to this prompt

13.

Simply double click the icon on your desktop to launch the dialer. Enter your details and click Connect to connect.
